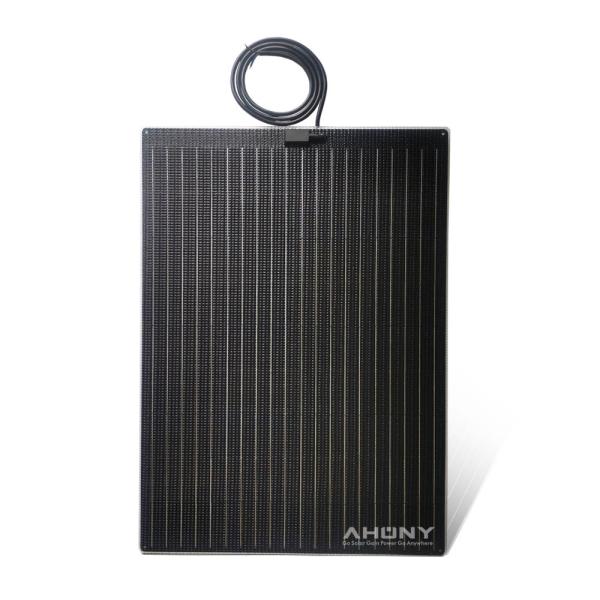

150W Semi Rigid Walkable Waterproof Solar Panels High Efficiency Mono Cell Pv Panel For Marine Camping Rv Boat Yacht Nav
High efficiency solar cell :Use leading brand cell and high efficiency A grade quality to insure high and stable output.
Walkable and Anti-slippery: By and means do not damage cells,the rough anti-slippery surface is safer for installation or maintenance.
Longer lifespan 15 years guaranteed: Premium weather or moisture resistance,for harsh environment 15 years life guaranteed,over 25 years lifespan.
High temp resistance and little power loss :The surface material resists high temperature flame retardancy UL94 VTM-0.Rugged and insulated bottom reduces area touched surface of yacht,RV,cart etc.Enables air circulation,it cools down panel and get little power loss.
Rigid,thin,light design for widely use:It's rigid to resist hailstone.semi flexible with bend angle less 5 degree,suitable for off grid use,marine,yacht,RV roof,on grid home system,parking lot,portable power generator etc.It's 1/6 thickness 7/10 the weight of glass solar panel

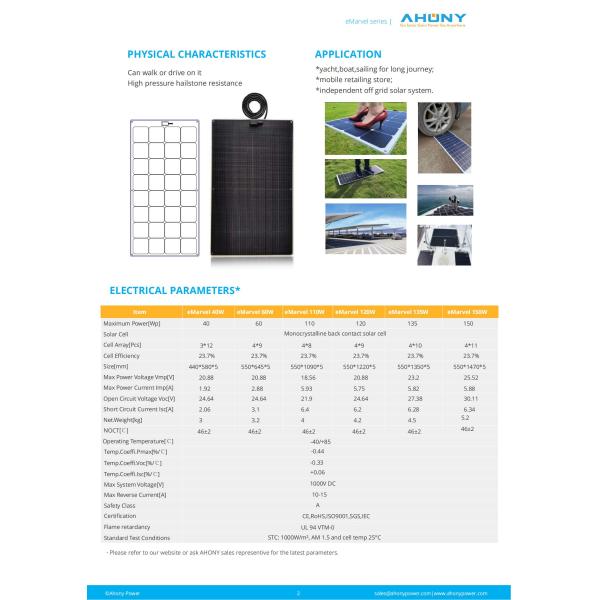

| Model No. | eMarvel M150W series |
| Product Name | Solar Panel 20~175w Waterproof Rigid High Efficiency Mono Cell with PET ETFE Surface. |
| Maximum Power[Wp] | 150W |
| Solar Cell | PERC cell |
| Cell Array[Pcs] | 4*9 |
| Cell Efficiency | 22.5% |
| Size[mm] | 670*1210*5mm |
| Max Power Voltage Vmp[V] | 20.88 |
| Max Power Current Imp[A] | 7.18 |
| Open Circuit Voltage Voc[V] | 24.43 |
| Short Circuit Current Isc[A] | 7.58 |
| Net.Weight[kg] | 7 |
| Power tolerance[%] | ±3% |
| NOCT[℃] | 45±2 |
| Operating Temperature[℃] | -40/+85 |
| Temperature Coefficient Pmax[%/K] | -0.44 |
| Temperature Coefficient Voc[[%/K] | -0.33 |
| Temperature Coefficient Isc[[%/K] | 0.06 |
| Maximum System Voltage[V] | 1000 V |
